Rocking Piston

ZW90

Max Flow

1.7 cfm (26 lpm)

Max Pressure Level

N/A

Max Vacuum Level

28.6"Hg (970 mbar)

Description

Our most compact twin-headed vacuum piston. Very versatile and quiet, and ideal for portable mains driven devices.

Specification

Model Number	ZW90AV-26/-0.97	ZW90AV-26/-0.97A
Open Flow	1.7 cfm (26 lpm)	1.7 cfm (26 lpm)
Max Pressure	N/A	N/A
Max Vacuum	28.6"Hg (970 mbar)	28.6"Hg (970 mbar)
Current at rated load	1.1A	0.6A
Power at rated load	110W	110W
Motor Type	PSC	PSC
Voltage/Frequency	110V/60Hz	220V/50Hz
Starting Current	1.2A	0.7A
Noise Level	N/A	N/A
Tank Capacity	N/A	N/A
Carton Dimensions	N/A	N/A
Net Weight	7.7lbs (3.5kg)	7.7lbs (3.5kg)

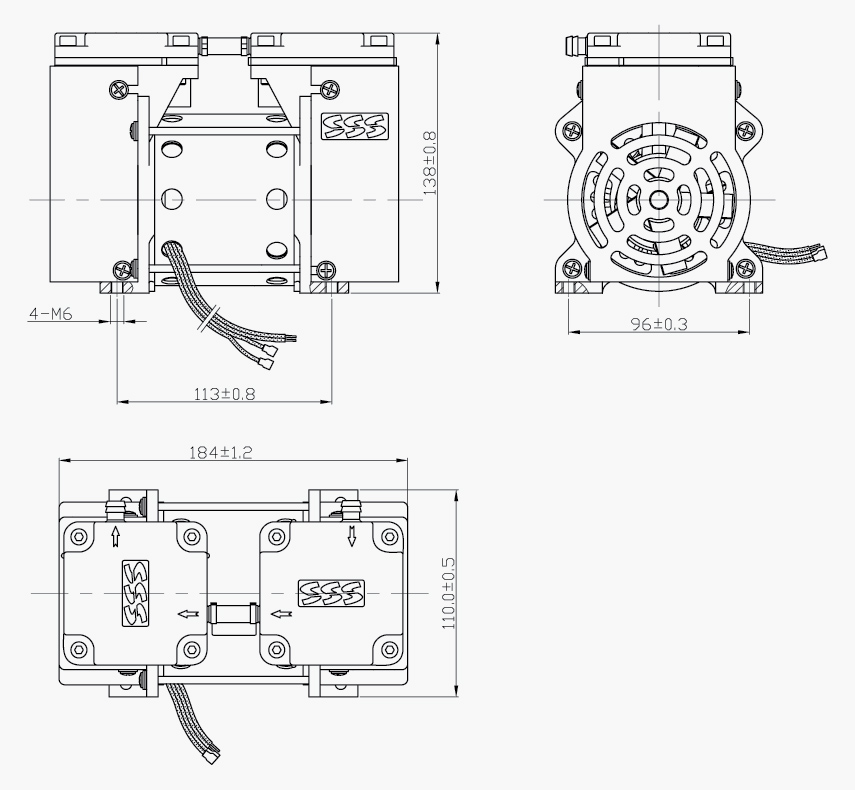

comprssor /pumps ZW90AV-26/-0.97;ZW90AV-26/-0.97A Images
